12K carbon fiber: a bigger tow, not a better face
A 12K tow holds 12,000 filaments. The number counts yarn size. It says nothing about fiber grade or stiffness. The cloth costs less per kilo than 3K. On a paddle it buys a wider energy spread, a softer catch and a bold face. It does not buy spin or stiffness.
What it is
- It is a tow count. One tow holds 12,000 filaments.
- The fiber is identical to 3K of the same grade.
- The cloth is thicker and the weave cell is wider.
Where it wins
- The cloth costs less per kilo than 3K.
- It gives a softer catch and more dwell.
- It spreads impact energy over a wider area.
- It sells on a product page gallery.
Where it loses
- It is less uniform across the face.
- Fat tows leave fat resin pockets.
- It adds no stiffness by itself.
- It adds no spin by itself.

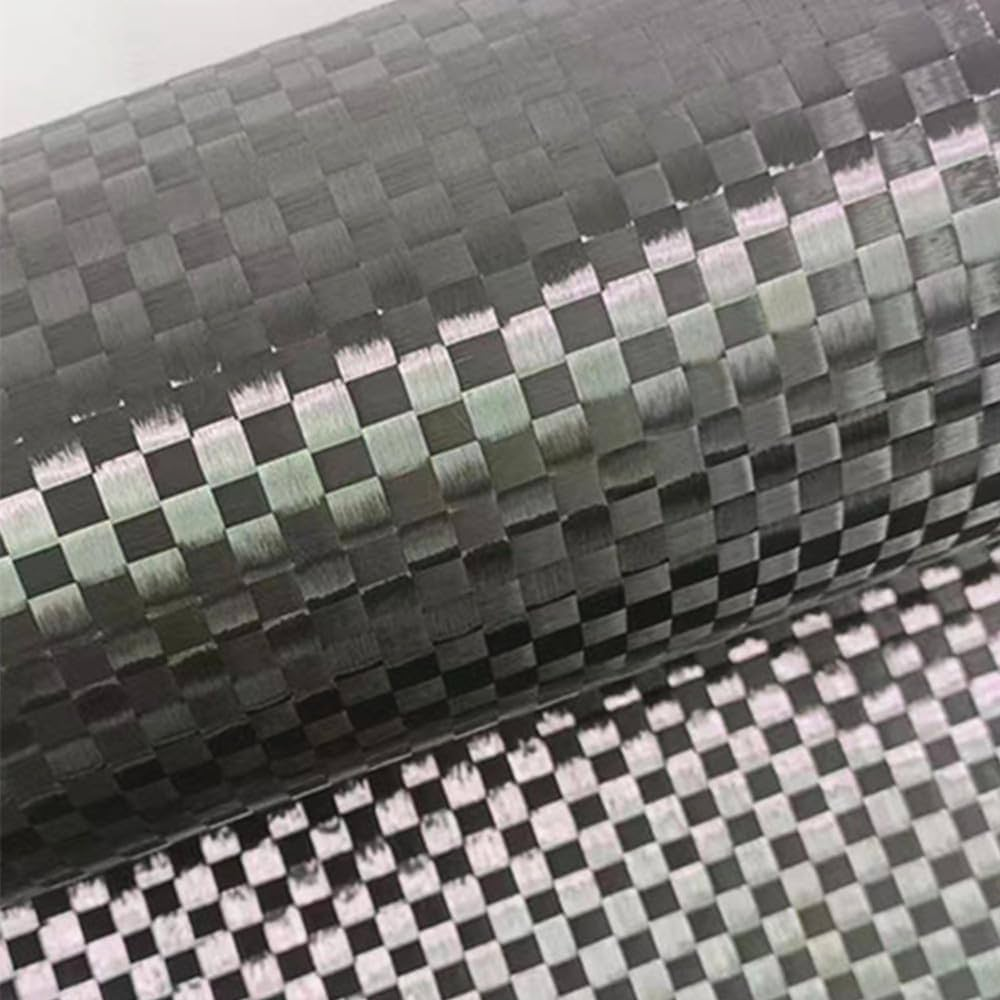

12K counts yarn, not quality
A carbon fiber tow is a bundle of continuous filaments. The “K” is shorthand for a thousand, so a 12K tow holds 12,000 filaments. That is the entire meaning of the number.
The filaments inside a 3K tow and a 12K tow are identical. They share the same 5–7 µm diameter, the same standard-modulus PAN fiber and the same ~230 GPa stiffness. What changes is how many of them are bundled together before weaving. A 12K tow is a thicker yarn, a thicker yarn gives a coarser cloth, and a coarser cloth costs less per kilogram.
| Tow count | Filaments | Tow width | Typical woven weight | Common home | Fiber cost / kg |
|---|---|---|---|---|---|
| 1K | 1,000 | 1–2 mm | 60–90 g/m² | Aerospace prepreg, instrument panels | Highest |
| 3K | 3,000 | 2–3 mm | 200–280 g/m² | Paddle faces, bike frames, cosmetic panels | High |
| 6K | 6,000 | 3–4 mm | 250–400 g/m² | Sporting goods, tubes, drone arms | Middle |
| 12K | 12,000 | 4–8 mm drawn · 10–25 mm spread | 300–800 g/m² woven · 60–200 g/m² spread tow | Wind blades, automotive panels, premium paddle faces | Low |
| 18K | 18,000 | 6–10 mm | 400–800 g/m² | Paddle faces (recent), industrial laminates | Low |
| 24K / 50K | 24,000 / 50,000 | 10–20 mm | 600–1,200 g/m² | Wind blades, pressure vessels, pultruded profiles | Lowest |
Tow widths, woven weights and the cost ranking are industry-typical ranges, not one mill's datasheet — every weaver publishes its own. The one number that does not move is filament diameter: standard-modulus PAN carbon runs 5–7 µm across all tow sizes. The count changes the yarn, not the fiber.
“12K carbon face” on a product page tells you two things: the yarn size and the look of the cloth. It does not tell you the fiber grade, the number of layers, the resin or the core. It does not tell you whether the paddle is any good.
From tow to woven fabric
A 12K cloth gets its character from two decisions: whether the tow is left round or spread flat, and how often the warp and weft cross.
Weave scale: 3K against 12K
Same fiber, same loom. The only variable is how many filaments ride in each bundle.
Round tow against spread tow
Spreading is how a cheap fat tow becomes a thin, strong ply. It is also extra process, so it costs more than the same tow left round.
Six steps from fiber to laminate
Precursor
Polyacrylonitrile (PAN) fiber is spun and held under tension. This is where the fiber's stiffness is largely set — long before anyone counts tows.
Carbonization
The fiber is heated in stages up to roughly 1,000–1,500 °C, driving off everything except carbon. Bundles leave the line as 3K, 12K, 24K or 50K tows.
Surface treatment and sizing
The tow is treated so resin will bond to it, then coated with a sizing — a thin coupling layer. Sizing choice matters to the finished laminate and is rarely mentioned in paddle copy.
Spreading (optional)
Rollers flatten the round tow into a wide tape. Spread tow builds thinner plies with almost no crimp. It is the same 12K yarn, behaving much closer to a unidirectional sheet.
Weaving
Warp and weft tows are interlaced on a loom: plain weave crosses every other tow, twill steps diagonally and crosses less often. This is the decision that creates the visible checkerboard.
Prepreg and layup
The cloth is impregnated with epoxy, stacked in plies, and cured under heat and pressure. Face, core and edge become one part. A paddle's stiffness is decided here — not by the K number.
A bigger tow usually costs less
Making a 12K tow and making a 3K tow cost about the same per metre of line time. One carries four times the carbon, so it is sold at a lower price per kilogram.
That is the economics of tow size. Small-tow fiber is made in smaller volumes for markets that pay for consistency and paperwork: aerospace, defence, motorsport. Large-tow fiber is built for throughput. Wind blades and pultruded profiles buy it by the tonne and do not care about a cosmetic weave. The price ladder therefore runs almost the opposite way to the marketing ladder.
Relative fiber cost per kg, by tow size
Four times the fiber, similar line time
A tow is drawn, carbonized and wound in one continuous process. Whether the bundle holds 3,000 or 12,000 filaments, the line runs at roughly the same speed. The 12K bundle therefore picks up about four times the mass per hour, which divides the fixed cost over far more kilograms.
Add the market effect: 12K is a volume industrial format with several producers competing, while 1K and 3K are niche. Niche supply, higher price.
A 12K paddle costs more for reasons that have nothing to do with the fiber. You are not paying for the fiber. You are paying for the surface treatment, the number of plies, the core, the thermoforming step, the mould, the testing, and the fact that a wide bold weave sells on a product page gallery. The cloth is one of the cheapest line items in the bill of materials.
The six figures that describe a 12K cloth
These are the values worth asking a supplier for. Anything beyond this is usually a brand name for one of them.
The definition. Four times a 3K tow, and the reason the weave cells look so much larger.
Identical to 3K fiber of the same grade. Put one filament from each under a microscope and you cannot tell them apart.
The industry range for 12K woven cloth. A heavier cloth means thicker tows or a tighter weave, not better fiber.
The same 12K tow spread flat. Thin plies, almost no crimp — used where weight and in-plane strength matter most.
What a player actually sees. It is roughly 2–3× the cell size of a 3K twill, and it is the main reason brands market 12K as premium-looking.
Modulus belongs to the fiber, not the tow count. A 12K standard-modulus face is not stiffer fiber than a 3K one. It is the same fiber, arranged differently.
Modulus and filament diameter are industry-generic values for standard-modulus PAN carbon fiber; areal weights are typical commercial ranges. Ask any supplier for their own mill certificates — we hand over ours per batch.
12K against the cloths it competes with
Four face materials sit in the same price conversation. The differences that matter are crimp, uniformity and drape — not the number on the label.
| Property | 3K twill | 12K woven | 12K spread tow | Unidirectional (UD) |
|---|---|---|---|---|
| Filaments per tow | 3,000 | 12,000 | 12,000, flattened | 12K–50K |
| Look on the face | Fine ~2 mm checkerboard | Bold ~4–6 mm checkerboard | Faint flat lines, near-solid | Flat black sheet, no pattern |
| Crimp (fiber waviness) | Highest of the four | Lower than 3K | Almost none | None |
| Drape and forming | Good, tight and stable | Coarser, resists tight curves | Excellent | One direction only |
| Uniformity across the face | Most uniform | Less uniform, more scatter | Most uniform per ply | Uniform along the fiber axis |
| Relative cloth cost | High | Low | Middle — spreading adds process | Low |
| Chosen when you want | Consistency and a classic fine grain | Dwell, bold cosmetics, large flat parts | Thin, light, strong laminates | Maximum stiffness per gram in one axis |
Crimp and uniformity comparisons are standard composites practice. Every interlacement bends the fiber slightly, and bending costs in-plane stiffness. Industry studies put the loss for a plain-weave laminate at roughly 10–20% versus the same fiber laid straight. A wider tow reduces the number of interlacements per cm, but each one is fatter, so the trade is not free in either direction.
Where 12K loses on a paddle face
- A coarser weave is less uniform across the face. A tight 3K twill repeats on a smaller pitch, so the surface behaves more consistently on off-centre hits. A wide 12K cell means the contact point can land on a fat crossover or in the dip between two of them.
- Bigger tows leave bigger resin pockets. At every crossover the weave traps a small pool of resin. Fat tows make fat pools. That is why 12K woven laminates typically show lower in-plane tensile strength, and more batch-to-batch scatter, than a 3K twill made from identical fiber.
The fiber is the same. The cloth is not, and the laminate follows the cloth.
Where 12K actually lives
Before it ever appeared on a paddle, 12K was the workhorse tow of heavy industry. It still is. Pickleball is a rounding error in its demand.
Wind turbine blades
The single largest consumer of large-tow carbon. Blade spars run to tens of metres and are built from thick, wide plies where cost per kilo and layup speed beat cosmetic weave. This is why 12K volumes are high and prices are low.
Automotive structural panels
Roofs, driveshafts and battery enclosures use 12K and heavier tows in fast-curing processes. Cycle time dominates; appearance is secondary unless the part is left visible carbon.
Pressure vessels and pipes
Hydrogen tanks, CNG cylinders and composite pipes are wound or pultruded from large tows. Continuous, straight fiber is the point — there is no weave and no crimp at all.
Hulls, masts and foils
Marine laminates mix 12K woven skins for toughness with UD for stiffness. The woven layer is there to resist impact, not to look pretty.
Bike frames and sports gear
Bicycles, hockey sticks, archery limbs and helmets. Visible 12K or 3K weaves are used cosmetically here too — the same marketing logic paddle brands copied.
Drones and UAV airframes
Spreading 12K into thin plies lets builders hit stiffness targets at low weight. This is the closest industrial cousin to a spread-tow paddle face.
Material references are listed at the end of the market-evidence section.
What 12K does on a paddle
On a paddle, the K number mostly buys feel and looks. Four things a 12K face changes, in order of how much a player notices them.
Softer catch
Wider tows spread the contact load over more fiber, so the face deflects a little more before it rebounds. Players call this a longer catch or more dwell time. It helps on drops, resets and dinks.
Wider energy spread
The load is shared across a bigger surface area, so off-centre hits lose less energy. That reads as a bigger usable sweet spot and less sting in the hand. It matters for players with elbow trouble.
Multi-directional bite
A wide raw weave presents the same roughness whichever way the swing path points. Spin still comes mainly from the surface treatment, raw or coated. The pattern helps it stay consistent.
Visual signal
A bold checkerboard photographs as premium in a product gallery. That is why brands put 12K on their tournament line. It is a commercial reason, not a mechanical one.
Dwell time, schematically
Contact behaviour at the same swing speed
Illustrative, not a measurement. Deflection is exaggerated — and the core, not the cloth, controls most of it.
Face
12K woven carbon fiber, 1–3 plies depending on target weight and stiffness. Raw (unpainted) or sealed, your call — raw bites more, sealed lasts longer cosmetically.
Core
Polypropylene honeycomb, usually 14 mm or 16 mm. 16 mm is the common pairing with a 12K face because both push the same way: more dwell, more forgiveness.
Construction
Cold-pressed for cost control, or thermoformed unibody for a stiffer, more connected feel and a foam-injected edge that widens the sweet spot.
Weight and size
225 g ± 5 g is our standard window, with ± 2–3 g achievable on precision builds. Shapes from 16.5 × 7.5 in tournament hybrid down to junior 350 × 170 mm.
Surface treatment
Raw weave, grit-sprayed, or a printed/coated finish. This decision changes spin and wear far more than the tow count does.
Handle
PU-wrapped, grip circumference 101 / 105 / 108 mm. Elongated handles available for two-handed backhands — the same logic Wowlly built a whole model around.
Core material and core thickness change how a paddle plays more than the face weave. Face construction changes it more than the tow count. The tow count mainly changes what the paddle looks like and what the cloth costs.
Three brands shipping 12K faces today
Three production paddles with a 12K face at three price points — USD 90, USD 249 and SGD 140 — and three different buyers. The spec line each brand publishes on its own product page is the evidence.
Selkirk — SLK OMEGA Hybrid Air
Face: 12k UltraWeave Carbon Fiber · Core: Rev-Control Polymer Honeycomb, 16 mm · Spin texture: ProSpin+ · USD 90.00
Selkirk's own spec line reads: “Made with a 12k UltraWeave Carbon Fiber Face”, with the build sheet listing the face as “12k UltraWeave Carbon Fiber” over a 16 mm polymer honeycomb core.
What it shows: a large brand putting 12K on a USD 90 paddle, not only on a flagship. 12K is a manufacturing choice, not a price tier.
View on selkirk.comKOBO — Scorch 12K CFS 16 mm
Face: 12K Carbon Friction Surface (textured) · Core: 16 mm reactive polymer honeycomb · Hydrofoam sidewalls, thermoformed unibody · USD 249.00
KOBO describes it as a “12K carbon friction surface, 16mm reactive polymer core, Hydrofoam sidewalls and thermoformed unibody construction”, and states the paddle is USA Pickleball approved.
What it shows: on a premium build, the 12K face comes with a specific surface texture and a thermoformed body. The face is one spec among several that set the price.
View on kobopickleball.coWowlly — DBS Double Backhand Special
Face material: 12K T700 Raw Carbon Fibre · Core: SX5 honeycomb, 15 mm · 8.0 oz, 16.3 × 7.3 in · USA Pickleball Approved · SGD 140.00
Wowlly's build sheet lists the face as “12K T700 Raw Carbon Fibre” and describes “top-of-the-line 12K T700 raw, unpainted Carbon Fibre paddle faces” used to “command control over ball spin”.
What it shows: a small brand using the wide raw weave as its whole identity, and pairing it with an unusual handle length rather than with a higher price alone.
View on wowlly.comHow one brand stacks its own weave ladder
| KOBO model | Face weave | Their own words on spin | Core | List price |
|---|---|---|---|---|
| Thunder AXE Infinity | 3K raw carbon | Highest — maximum texture | 18 mm, triple air channels | USD 399 |
| Scorch | 12K raw carbon | High — balanced | 16 mm, dual air channels | USD 249 |
| Tsunami | 18K raw carbon | Moderate — precision | 16 mm, dual air channels | USD 249 |
| Lightning | T700 raw carbon | Moderate-high — crisp | 16 mm | USD 199 |
Taken from KOBO's own paddle comparison, published on their site. Their 3K paddle is the most expensive and they rate it highest for spin. Their 18K paddle is rated moderate for spin at the same price as the 12K. A brand selling all three sizes is saying the same thing: the K number is not a quality ladder.
Who should buy a 12K face, and who should not
Buy 12K if you sell on feel, looks and a bold face. Do not buy 12K if you sell on spin numbers, on weight, or on landed cost. Match the face to the brief before the sample stage, because none of this is fixable afterwards.
| Your buying situation | What a 12K face actually gives you | Our advice |
|---|---|---|
| Launching one hero paddle, mid-to-premium, and the face has to look expensive in the product photos | A wide, open grain and a softer catch. It reads as premium on a shelf or a screen without needing a coating to sell it. | Buy 12K. |
| Your customers compare face grain up close and argue about spin | A coarser grid than 3K or 18K. Under a close-up it looks looser, and it bites less than a raw 3K twill at the same texture. | No. Specify raw 3K twill. |
| The whole decision is landed cost | Almost nothing. Face cloth is a small share of the bill of materials, and 12K cloth is not scarce. | No. Spend the money on the core instead. |
| You need the lightest paddle you can get at a given stiffness | Nothing extra from a standard 12K twill. The crimp in the weave costs you stiffness before the core does. | Not this. Ask for spread-tow or a UD skin. |
| You want one face spec across a whole model line, repeatable at volume | A stock weave that mills run continuously, so supply is stable and batch-to-batch variation is low. | Buy 12K. |
| You want to sell “12K” as the reason your paddle costs more than the next one | Nothing you can put on a spec sheet. Brands selling 3K, 12K and 18K side by side do not price them as a ladder. | No. Sell the core and the build. |
Alternatives we quote the most: raw 3K twill for maximum bite and a fine classic grain. Spread-tow 12K or a unidirectional skin under a woven outer ply for the lowest weight at a given stiffness. A 3K face over a mid EVA core for the best value in the mid tier. Send us your retail price and the player you are chasing. We will quote the build that fits.
Material references: filament diameter, modulus and manufacturing sequence follow the general descriptions in the Wikipedia entry on carbon fibers and the fiber documentation published by Toray Composite Materials America. Weave and crimp behaviour is standard composites engineering.
Four things 12K will not do for you
We sell 12K faces, so check this list against our own quote.
Read this before you specify 12K
- It will not make a paddle stiffer. Stiffness comes from the laminate stack and the core. Swapping a 3K face for a 12K face on the same core changes the feel a little and the look a lot.
- It is not a spin upgrade by itself. Spin is governed by surface roughness and whether the face is raw or coated. A raw 3K face typically bites harder than a sealed 12K one, because rough beats wide.
- It is not a premium fiber. As a cloth it is usually the cheaper option per kilo. If a supplier charges a large premium purely for “12K”, ask what else changed in the bill of materials.
- It will not rescue a cheap core. A 12K skin over a thin, dead core plays like a thin, dead core. Money is better spent on core and construction first, cosmetics last.
Summary: 12K is a design choice, not a performance tier. Buy it when the face is part of your story. Skip it when the core is.
What a 12K build costs, and how it ships
FOB pricing by build tier, published for OEM orders. These are the ranges we quote.
| Tier | Typical build | FOB price | MOQ |
|---|---|---|---|
| Entry | Fiberglass face, EVA core | USD 8.00–15.00 / pc | 500+ |
| Mid carbon | 3K carbon face, mid EVA core | USD 15.00–35.00 / pc | 300+ |
| Premium | 12K / 18K face, multi-layer core | USD 35.00–65.00 / pc | 200+ |
| Flagship | Ceramic-sand surface, full custom | USD 50.00–100.00 / pc | 100+ |
12K builds usually land in the USD 100–250 retail band for a serious brand. Below USD 100 retail, glass fiber and entry carbon are the realistic faces.
Packed and shipped
Each paddle goes into a PE bag, then a bubble bag, then a printed colour box if you want one. Master carton is 650 × 500 × 350 mm, 50 pieces per carton, around 12.5 kg.
Tell us the destination and we will quote CIF as well as FOB, with the carton dimensions on the invoice so your forwarder can plan.
What you can change
Weave (3K, 6K, 12K, 18K, spread tow), face colour and print, core thickness 10–16 mm, core material, edge guard colour and logo, handle length and grip circumference, surface treatment, weight window, shape and your own packaging artwork.
The 12K cloth itself is a stock weave. The way it is laminated, cut and finished is where your product becomes yours.
What we can actually prove
Every check below runs in our plant, on your order. No lab claims we cannot show paperwork for.
X-ray inspection
Every production batch goes through X-ray. It shows voids, resin-rich pockets, core deformation and delamination — exactly the failure modes a coarse weave can hide.
Compression and batch testing
Paddles from each batch are loaded and checked, with results logged against the batch record. You can ask for the report for your order.
Ball-impact tester
Our cannon-style rig fires balls at the face at controlled speed to check for face cracking, edge separation and core crush before we ship.
In-house USAP and PBCoR pre-check
We screen dimensions, surface roughness and bounce against the published standard before submission. Certification itself is issued to the brand owner, not to us.
Batch QC reports
Weight, thickness, balance point, grip circumference, surface roughness and visual inspection are recorded per batch and travel with the shipment.
Mill and origin documents
We buy carbon cloth on your bill of materials and pass on the mill's own documents. Material claims stay with the brand that specified them.
