Gen 3 Pickleball Paddle: PP honeycomb + EVA foam-injected walls.
The next leap in thermoformed paddle construction. A PP honeycomb core wrapped in a single piece of injected EVA foam delivers a larger sweet spot, more pop, and a noticeably softer feel on off-center hits — all in a one-piece molded body.
What makes a paddle "Gen 3"
The industry has settled on three generations of thermoformed paddle construction. Gen 1 is the original cold-pressed build with a separate edge guard. Gen 2 is fully thermoformed but still relies on a bonded edge strip. Gen 3 replaces that edge strip with foam injected directly into the perimeter of the paddle body — one continuous molded wall, no glue line, no seam to delaminate.
For B2B buyers, the practical difference is the sweet spot. With traditional edge guards, the playing area effectively ends where the edge guard begins. Gen 3's foam-injected walls push the playable surface closer to the edge of the paddle, and the foam itself absorbs vibration instead of transmitting it to your hand.
The build pairs naturally with a raw-carbon face for maximum spin and power, and a PP honeycomb core for the firm, responsive feel that power players prefer. The result is a paddle that hits harder, feels more solid on off-center contact, and stays quieter than a separate-edge-guard build.
Because the foam is injected into the paddle body during molding, it is also more durable than bonded edge guards. There is no glue line to fail under repeated impact — the foam and the face are one continuous part.
The numbers behind the build
Standard Gen 3 specs. Every line is adjustable for your brand — tolerance bands, color, finish, packaging and graphics are all open in the OEM/ODM process.
| Item | Spec |
|---|---|
| Process | Thermoformed, one-piece molded (Gen 3) |
| Core | PP honeycomb |
| Edge wall | EVA foam-injected perimeter (no separate edge guard) |
| Face material | Raw carbon: T700 raw / 3K / 12K / 18K woven; fiberglass available on request |
| Surface finish | Raw carbon matte (standard) or ceramic-sand-infused texture (4 colors) |
| Thickness | 14mm (control-oriented) / 16mm (power-oriented); custom molds available |
| Length × width | USAP-compliant (Length ≤ 17 in; length + width ≤ 24 in) |
| Weight | 225g ±5g standard; ±2–3g available on the Precision Program |
| Handle | PU-reinforced, grip length and circumference customizable |
| Edge guard / butt cap | Integrated (foam-injected) + custom end cap and silicone band |
| MOQ | 200 pcs per order / per color / per custom option |
| Sample lead time | ~10 days (standard build) / 2–3 weeks extra for new mold or shape |
| Bulk lead time | ~35 days for 2,000 pcs; longer for higher volumes or peak season |
| Production capacity | 80,000 thermoformed paddles / month (China + Vietnam) |
| Compliance support | USAP pre-test data, sample preparation and documentation for brand submission |
Weight and thickness shown are standard catalog values. Thermoformed Gen 3 paddles can also be tuned to a custom target weight on request — confirm with your account manager at quotation.
Why buyers specify Gen 3
Five things that consistently show up in the feedback from brands that switched from Gen 2 thermoformed or cold-pressed builds to Gen 3.
Power-first response
The PP honeycomb + raw-carbon combination is the most power-oriented construction in our catalog. Designed for players who want to drive the ball and finish at the net.
One-piece foam-injected wall
No separate edge guard, no glue line, no seam. The EVA foam is injected directly into the paddle body during thermoforming, eliminating the most common delamination failure point.
Larger, more forgiving sweet spot
Foam-injected walls push the playable surface closer to the paddle edge. Off-center hits stay in play, with noticeably less vibration transferred to the hand.
Quieter on impact
The foam wall absorbs high-frequency vibration. The paddle sounds and feels more "muted" than a separate-edge-guard build — a quality-of-life feature that recreational and senior players consistently rate.
Ceramic-sand ready
Gen 3 pairs naturally with ceramic-sand-infused face texture (4 sand colors, 80 / 100 mesh). Lab data: 100 hits drop only ~40 RPM of spin versus ~100 RPM for standard finishes.
USAP submission-ready samples
Every Gen 3 sample ships with in-house pre-test data (size, roughness, friction, gloss, deflection). Your USAP submission package is half-built before we hand it to you.
Why the industry moved to foam-injected walls

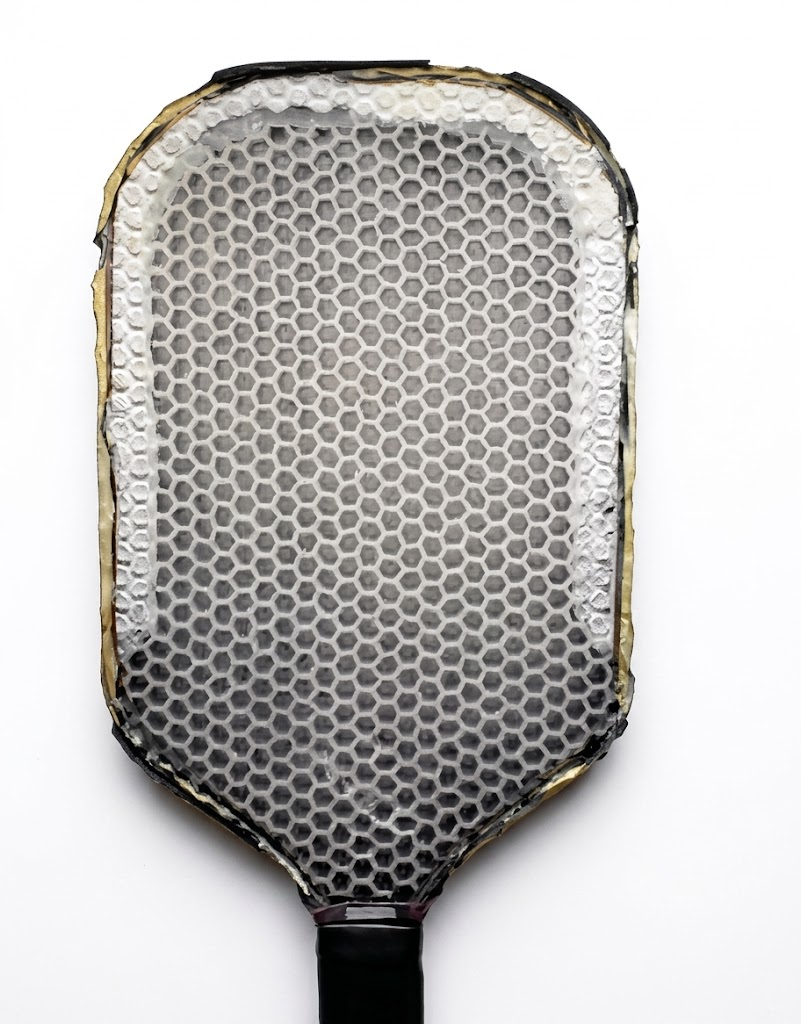

The cross-section shows what changed. Each generation extended the molded body deeper into the edge, and removed one more bonded seam in the process.
Cold press + separate edge guard
Layers of carbon or fiberglass compressed in a cold mold, with a separate bonded edge guard glued on after production. Strong, but the glue line is the most common failure point in the field.
One-piece body + bonded edge guard
Heat-molded into a single body, but the edge is still a separate strip bonded to the perimeter. Eliminates the body seam, but the edge seam remains.
One-piece body + injected EVA foam wall
The edge is no longer glued on. EVA foam is injected into the perimeter of the body during molding, becoming one continuous part with the face and core. No seam, larger sweet spot, softer feel, quieter impact.
Pair Gen 3 with a ceramic-sand-infused face
Gen 3's raw-carbon face is the standard substrate for our ceramic-sand-infused surface technology. The sand is mixed into the resin during layup, so the texture is part of the face — not a coating that wears off.
(raw)
- 4 sand colors in stock: black (raw), blue, green, yellow
- 2 grit sizes: 80 mesh (coarser, more spin) / 100 mesh (finer, more control)
- Sand is mixed into the resin during layup — the texture is structural, not a coating
- Compatible with carbon fiber and fiberglass faces; works on both cold-pressed and thermoformed builds
- Custom sand colors available above the standard MOQ
Default packing & custom options
Standard export packing fits 50 paddles per carton, sized for easy FCL and LCL loading. Custom retail packaging, UPC labels, and Amazon FBA prep are all available on request.
Inner packing
Individual PE bag + bubble wrap around the paddle face and edge.
Carton
5-ply export carton, 65 × 50 × 35 cm, 50 paddles per carton, ~12.5 kg.
Custom packaging
Retail boxes, hang tags, UPC codes, Amazon FNSKU labels, printed master cartons.
Shipping terms
EXW Shenzhen / FOB Yantian / Vietnam FCL — DDP quotes available on request.
Build the Gen 3 paddle under your brand
Every element is open in the OEM/ODM process. Standard customizations are listed below; if you need something not on the list, ask — most things are doable at this MOQ.
Built on a real thermoforming line
Gen 3 is not a one-off construction. It runs on a dedicated thermoforming line with foam-injection capability, in two factories — so we can scale and absorb tariff pressure without breaking your program.
What buyers ask about the Gen 3 build
What is the difference between Gen 1, Gen 2 and Gen 3 pickleball paddles?
Why is Gen 3 called "power-oriented"?
Is Gen 3 USAP-approved?
What is the minimum order quantity?
Can I customize the mold for a unique shape?
Can I pair Gen 3 with the ceramic-sand surface?
How do I get a quotation?
Spec a Gen 3 paddle under your brand
Send us your target construction, target weight and brand mark. We'll come back with a tiered quote, a sample plan, and the in-house pre-test data your USAP submission will need.
